Omnibase

This page documents the design, implementation and setup of FRIDA's custom holonomic base, which replaced the DashGo B1 differential drive platform.

Motivation

The DashGo platform, while functional, imposed constraints on the robot's navigation flexibility. Transitioning to a custom holonomic base offers several key advantages:

  • Omnidirectional movement — the robot can translate in any direction without rotating, enabling smoother and more precise maneuvers in tight or dynamic indoor environments.
  • Full mechanical ownership — being entirely designed and built by the team allows complete control over the platform's architecture, facilitating future improvements and adaptations tailored to competition requirements.
  • Improved integration — custom electronics and mechanical structure allow a tighter integration between the base, the arm, and the rest of the robot's systems.

Mechanical Design

Wheel Selection: Mecanum vs Omni

An early design decision was whether to use mecanum wheels or omni wheels. Both achieve holonomic motion but differ in their trade-offs:

Feature Mecanum Wheels Omni Wheels
Vibration & stability Lower vibration, greater stability More vibration
Space efficiency Larger footprint (wheels offset 45°) Smaller footprint
Push force Greater in all directions Lower
Max velocity Moderate Higher
Heavy load applications Preferred Less suitable
Cramped space navigation Moderate Better

After evaluating competition requirements — particularly the need to carry loads and operate reliably — mecanum wheels were selected as the preferred choice.

Mecanum vs Omni wheels comparison

Space efficiency comparison between omni-wheels and mecanum wheels

CAD Design

The base structure uses 4040 aluminum extrusion profiles as the main chassis frame. Motors are mounted with custom-designed motor mounts that adapt the actuator attachment to the extrusion profile geometry.

Omnibase CAD model

Proof-of-concept CAD model of the omnibase

Actuator System: ODrive S1 + BLDC Motors

Each of the four wheels is driven by an EaglePower LA8308 90KV brushless motor through a 9:1 gearbox, paired with an ODrive S1 motor controller, following a quasi direct drive (QDD) approach inspired by the OpenQDD project.

ODrive S1

The ODrive S1 is a compact, high-performance FOC (Field-Oriented Control) motor controller designed for robotics applications.

Parameter Value
DC bus voltage range 12 V – 48 V (12S LiPo max)
Continuous phase current 40 A (with heat spreader)
Continuous power output 1600 W
PCB footprint 66 mm × 50 mm
Mass 35 g (55 g with screw terminals)
Communication CAN (isolated, daisy-chain), UART, USB-C
Onboard absolute encoder Yes — no homing required on startup
Control modes Torque, velocity, position, trajectory

Key features for this application:

  • Galvanically isolated CAN bus with daisy-chain connectors (J16/J17), allowing all 4 S1s to share a single CAN bus to the main controller without ground loop issues.
  • Onboard absolute encoder eliminates the need for homing routines when the robot powers on.
  • Compact form factor (smaller than a credit card) makes it feasible to mount directly on the base chassis.

The four ODrive S1 units are connected in a CAN daisy-chain, all communicating with the central STM32H755 microcontroller using the CANSimple protocol.

Electronics & Control Architecture

The control PCB is the central hub of the omnibase, designed entirely by the team. It interfaces the main computer with the four motor controllers and onboard sensors.

Control PCB

The schematic was designed in EasyEDA (V1.0) by Ximena Trejo. Full schematic PDF available here.

Base Omni Shield - Page 1: STM32H755

Base Omni Shield Rev 2 — Page 1: STM32H755 pinout

Base Omni Shield - Page 2: Peripherals and ODrive connectors

Base Omni Shield Rev 2 — Page 2: TJA1051, BNO055, BLE module and ODrive connectors

Key Components

Component Interface Role
STM32H755 — Dual-core (Cortex-M7 + Cortex-M4) main microcontroller; handles CAN communication, odometry, and BLE
BNO085 I2C (SCL/SDA) 9-DOF IMU; the firmware reads its game rotation vector (yaw) and gyro z for odometry fusion. The Rev 2 schematic shows the earlier BNO055 on the same bus
TJA1051 CAN (CTX/CRX) CAN bus transceiver; interfaces the STM32 CAN peripheral with the physical CAN bus to the 4 ODrive S1s; powered at 5V
BLE Module UART (BLE_RXD/BLE_TXD) Bluetooth Low Energy module for wireless gamepad connectivity; 6-pin connector, powered at 5V
ODrive connectors ×4 30-pin Per ODrive: CANH/CANL, PWM, encoder channels A+B (ENCA/ENCB), GND
CAN termination — 2×60Ω resistors in series (= 120Ω) with 100nF capacitor to GND, per CAN bus standard
Power input Terminal block 2-pin PWR_5V input with power switch (SW_PWR_STM); 3.3V and 5V indicator LEDs onboard

Communication Topology

[Main Computer]
      |
    [STM32H755]
      |  (CAN via TJA1051 — CANH/CANL)
      +——[ODrive S1 #1]  ← CANH, CANL, PWM, ENCA, ENCB
      +——[ODrive S1 #2]  ← CANH, CANL, PWM, ENCA, ENCB
      +——[ODrive S1 #3]  ← CANH, CANL, PWM, ENCA, ENCB
      +——[ODrive S1 #4]  ← CANH, CANL, PWM, ENCA, ENCB
                                    [120Ω + 100nF termination]

      + [BNO085]     (I2C — SCL/SDA)
      + [ESP32]      (UART — BLE_RXD/BLE_TXD, Bluetooth gamepad)

The STM32H755 acts as the bridge between the high-level computer (running ROS 2) and the low-level motor controllers. It sends velocity/torque commands over CAN to each ODrive S1; the board also routes PWM and encoder signals (ENCA/ENCB) per motor, but the current firmware commands and reads the ODrives only over CAN. IMU data from the BNO085 is read over I2C for odometry fusion.

The PCB was designed in EasyEDA (V1.0) by Ximena Trejo, created and updated on 2026-03-09/10.

Firmware

The firmware runs on the Cortex-M7 core of the STM32H755 under FreeRTOS. The STM32 is the CAN master: it receives velocity commands, converts them into wheel speeds with mecanum inverse kinematics, sends a setpoint to each ODrive every cycle, and reports odometry and status back to the ROS computer.

Task Rate Role
UART_RX_Task ~200 Hz Parses commands from the ROS computer (USART3)
BT_RX_Task ~200 Hz Parses gamepad commands from the ESP32 (USART2)
ODriveTask 1 ms loop Mecanum IK, CAN setpoints, CAN feedback, EKF update, telemetry
IMU_Task ~500 Hz poll Reads the BNO085 over I2C
UART_TX_Task On demand Sends telemetry (~50 Hz slim / ~10 Hz full) and firmware errors

On-MCU EKF

Odometry is estimated on the microcontroller by a six-state Extended Kalman Filter, state [x, y, yaw, vx, vy, ω], updated at 50 Hz. It fuses the body-frame wheel velocities with the BNO085 yaw and yaw rate. Mecanum rollers slip during rotation, so the wheel-derived angular velocity is given a very large variance and heading comes from the IMU; IMU yaw jumps above 40° are rejected. The filter replaced robot_localization on the omnibase: the pose estimate exists from boot and keeps running even if the ROS stack restarts.

Safety

  • Command watchdog: if no velocity command arrives from ROS or Bluetooth for 500 ms, all four motors are set to zero.
  • Hardware e-stop: a normally-closed button on PE2, debounced, with a hold time before re-arming.
  • CAN bus-off recovery: the CAN peripheral restarts automatically without rebooting the MCU.
  • UART self-healing: overrun errors on both UARTs are cleared and reception is re-armed.
  • Error reporting: CAN, ODrive, IMU, watchdog and stack errors are queued and sent to the ROS computer, where the dashboard lists them.

Building and Flashing

The STM32 project is firmware/STM32H7_OMNIBASE_CAN_BNO085 in home-custom-base. Open it in STM32CubeIDE, build the CM7 project and flash it through the board's ST-LINK USB port.

Compile-time switches in the firmware:

  • IMU_ENABLED: disables the BNO085 task when the IMU is not connected.
  • EKF_TRUST_IMU: set to 0 to run the EKF on wheel odometry only.

Warning

Power the ODrives (10.5 V to 29 V) before booting the STM32. If the drives are off when the firmware starts, CAN transmission times out.

ROS 2 Interface

On the robot, the base is driven by the odrive_dashboard node of the omnidriver package in home2. It talks to the STM32 over serial (230400 baud), subscribes to cmd_vel, publishes odrive/odom and odrive/imu, broadcasts the odom → base_link transform and serves a web dashboard on port 5000. See Bring-up for the topics and launch commands.

Repository

The firmware, ODrive configuration backups and a standalone version of the dashboard are maintained in:

The repository includes: - STM32 firmware (FreeRTOS tasks, ODrive CAN control, BNO085 driver, EKF) - odrive_comm ROS 2 package with the standalone dashboard - ODrive configuration backups and calibration/test scripts (odrive_config/)

Setup

Hardware List

Component Part Notes
Wheels 4× mecanum ~15 cm diameter
Motors 4× EaglePower LA8308 90KV Brushless, 20 pole pairs, 9:1 gearbox
Motor drivers 4× ODrive S1 CAN, onboard encoder, 2 Ω brake resistor
Main controller STM32H755 (NUCLEO-H755ZI-Q) FreeRTOS on the Cortex-M7 core
CAN transceiver TJA1051 FDCAN1, 500 kbps
IMU BNO085 I2C1, game rotation vector at 50 Hz
Wireless teleop ESP32 Bluetooth bridge for a PS5 / DualShock 4 controller
Lidars 2× RPLIDAR C1 Opposite corners, merged into one 360° /scan
Battery 8× LiFePO4 3.2 V 25 Ah in series + Daly BMS 25.6 V nominal, 640 Wh; powers the whole robot
Emergency stop Normally-closed button Wired to PE2
Chassis 4040 aluminum profiles + MDF covers 64 × 50 cm footprint with wheels

Wiring

STM32 Pinout

Pin Function Connected to
PD0 / PD1 FDCAN1_RX / FDCAN1_TX TJA1051 → CAN bus to the 4 ODrives
PB6 / PB7 I2C1_SCL / I2C1_SDA BNO085
PD5 / PD6 USART2_TX / USART2_RX ESP32 (115200 baud)
PD8 / PD9 USART3_TX / USART3_RX ROS computer through the ST-LINK USB port (230400 baud)
PE2 GPIO input, internal pull-up E-stop button (NC to GND)

The ST-LINK USB port shows up on the computer as /dev/ttyACM*. On the Orin, docker/navigation/setup-USB.sh in home2 installs udev rules that create stable names: /dev/ttyOmniSTM32 for the STM32 and /dev/ttyOmniLidar1 / /dev/ttyOmniLidar2 for the lidars.

CAN Bus

The four ODrives are daisy-chained on a single CAN bus (connectors J16/J17 on each S1). Connect CAN_H and CAN_L to the bus, terminate both ends with 120 Ω and tie the CAN ground to the system ground at one point only.

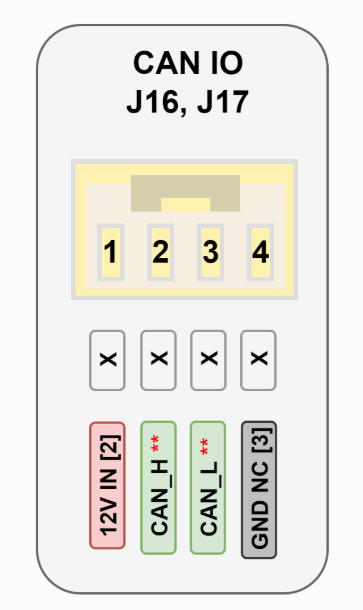

ODrive S1 CAN IO connector pinout

ODrive S1 CAN IO connector (J16, J17). Source: ODrive S1 datasheet

Wheel CAN node ID
Front-Left 36
Front-Right 34
Rear-Left 33
Rear-Right 40

The node IDs are assigned in the firmware at boot, before CAN reception is enabled.

ODrive Configuration

The ODrives are configured from the ODrive GUI over USB. The current configuration of each drive is backed up in odrive_config/odrive_node<ID>.json in home-custom-base, so a replaced drive can be restored from there.

Parameter Value
DC bus overvoltage / undervoltage trip 29 V / 10.5 V
DC max positive / negative current 15 A / −0.01 A
Brake resistor Enabled, 2 Ω
Motor 20 pole pairs, 90 KV
Current soft / hard max 20 A / 23 A
Encoder Onboard
Control mode Velocity control, ramped input (VEL_RAMP)
Velocity ramp rate / limit 40 turns/s² / 25 turns/s
CAN 500 kbps, heartbeat every 100 ms, encoder feedback every 10 ms

After changing the configuration, run the steps of the GUI's Apply & Calibrate page in order: Erase & Reboot, Apply, Save & Reboot, Run Calibration Sequence, Save & Reboot. Calibration only works with the drive powered from the DC bus and the wheel free to spin.

Single parameters can also be written over CAN from the dashboard's "Advanced param (RxSdo)" box; odrive_config/flat_endpoints.json lists the endpoint IDs for ODrive firmware v0.6.12.

Bring-up

On the Robot (home2)

From the home2 repository on the Orin:

./run.sh navigation --move   # base driver + lidars + teleop only

--move runs nav_main/launch/omni_setup/omni_basics.launch.py, which starts the odrive_dashboard node (from the omnidriver package) and the two lidars. The dashboard is the only publisher of the odom → base_link transform: it takes the pose and covariance from the on-MCU EKF, so robot_localization is not launched. For mapping and navigation use ./run.sh navigation --mapping or ./run.sh navigation --gpsr; see the home2 navigation README for the full workflow.

The web dashboard is served at http://<robot-ip>:5000. It shows odometry, IMU, ODrive axis states, the link status of the ESP32 and the ROS computer, and the firmware error log.

Main ROS 2 interface of odrive_dashboard:

Topic Type Direction
cmd_vel geometry_msgs/TwistStamped (Nav2) or Twist Subscribed
odrive/odom nav_msgs/Odometry (EKF pose, body-frame twist) Published
odrive/imu sensor_msgs/Imu (BNO085 yaw and yaw rate) Published
odrive/axis_states, odrive/axis_errors, odrive/bus_voltage Diagnostics Published
TF odom → base_link Published

Standalone (home-custom-base)

To test the base without the rest of the robot, use the dashboard in home-custom-base:

cd omnibase_ws
colcon build --packages-select odrive_comm
source install/setup.bash
ros2 run odrive_comm odrive_dashboard

The dashboard is then served at http://localhost:5000.

Debugging the CAN Bus with a CANable

A CANable adapter lets a Linux computer listen to the CAN bus directly:

sudo apt install can-utils
ls /dev/ttyACM* /dev/ttyUSB*                 # find the CANable port
sudo slcand -o -c -s6 /dev/ttyACM1 can0      # -s6 = 500 kbps
sudo ip link set up can0 txqueuelen 1000

candump can0                # dump all traffic
cansniffer can0             # live view grouped by ID
canbusload can0@500000      # bus load

More information in the CANable getting started guide.

Troubleshooting

  • I2C init errors at boot, or nothing works: usually a FreeRTOS task ran out of stack. Increase the stack size of the task that fails; the firmware also reports stack overflows through its error log.
  • An ODrive stays in INITIALIZING: expected for 1 to 3 seconds after power-up or after changing a parameter such as current_hard_max; longer than that, it cannot be cleared with "clear errors". The only fix found so far is to power everything off, wait a few seconds and power on again. It happened at RoboCup 2026.
  • Repeated CAN bus-off, axis faults or arm timeouts: check the CAN connectors, the termination resistors and the single CAN ground tie before suspecting the firmware.
  • Heading drifts and the IMU looks dead: there is no IMU staleness watchdog yet. If the BNO085 stops sending samples, the EKF silently falls back to wheel-only odometry.
